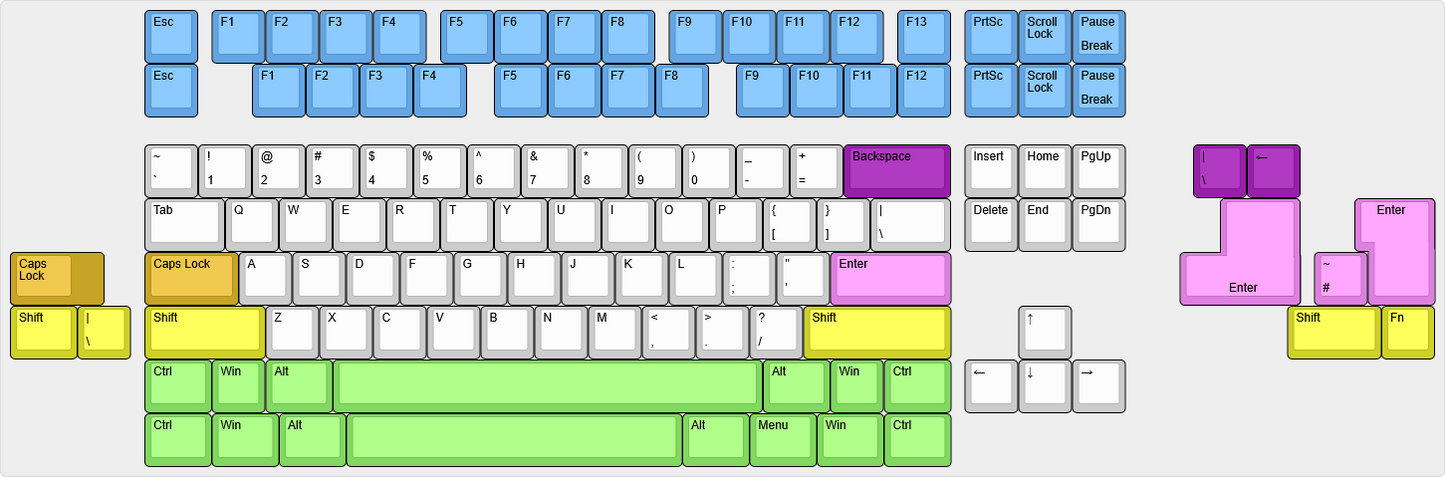

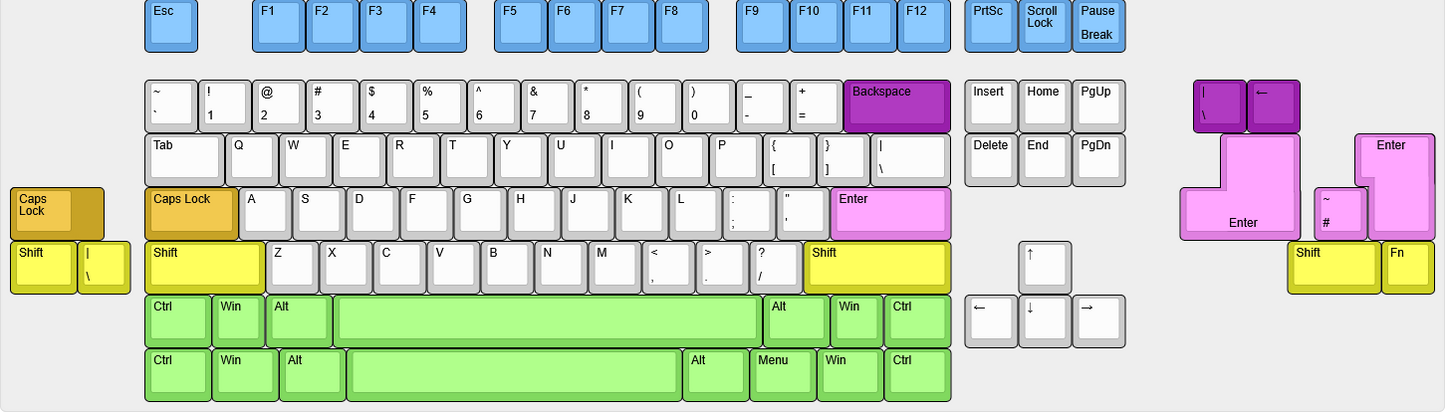

VK - Waffling80 NMB TKL PCB

The VK - Waffling80 TKL PCB is an updated version of the Waffling80 TKL PCB. This PCB supports the NMB 4th/5th Gen BAE where the switch is rotated.

Note: This PCB does not fit all TKL cases; make sure to check the compatibility list.

Features:

• QMK & VIA main repos
• USB-C (can be broken away) and JST-connector for daughterboard

• Support H87/H88 cases, check the supported list: Link
• Open sourced with C-OHL S

Connectors

• USB Type C
• Pico-EZmate
• JST
